STEAM FILTRATION SYSTEMS

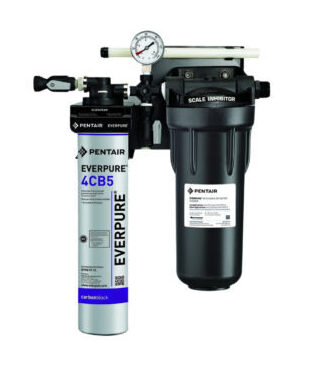

EV979750
EVERPURE KLEENSTEAM CT

Features

• Sophisticated Hydroblend compound prevents limescale formation in steam applications.
• A total system delivering high quality filtered water with cleaning and deliming capabilities.
• Filters incoming water to improve the performance, maximize energy efficiency and increase the life of steam equipment.
• Reduces chlorine-induced corrosion.
• System is simple to install, operate and maintain.
• Longer lasting SS-IMF Cartridge is more effective in higher alkalinity/hardness/ TDS/temperature installations.
• Easy deliming with Everpure’s ScaleKleen, which is fed directly into the boiler through the SR-X Bowl without boiler disassembly or the use of dangerous acids.
• ScaleStick is NSF® Certified under NSF/ANSI Standard 42 for material requirements only.

Specifications

◆ Service Flow Rate - Maximum 1.67 gpm (6.3 Lpm)
◆ Pressure Requirements - 10 - 125 psi (0.7 - 8.6 bar), non-shock
◆ Maximum Water Temperature at Inlet - 80°F (27°C)
◆ Overall Dimensions - 15.23" L x 13.72" W x 6.23" D , (38.6 cm x 34.8 cm x 23.5 cm)
◆ Inlet Connection - 3/8"
◆ Outlet Connection - 3/8"
◆ Operating Weight - 18 lbs (8.1 kgs)
◆ Shipping Weight - 15 lbs (6.8 kgs)
◆ Electrical Connection - None required
◆ Alkalinity Range - 2 to 12 grains per gallon

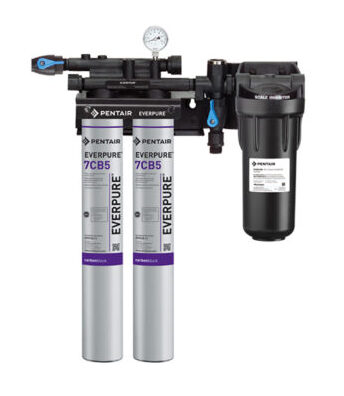

EV979722
EVERPURE KLEENSTEAM II TWIN SYSTEM

Features

• Sophisticated Hydroblend compound prevents limescale formation in high temperature steam applications.
• A total system delivering high quality filtered water with cleaning and deliming capabilities.
• Filters incoming water to improve the performance, maximize energy efficiency and increase the life of steam equipment.
• New dual cartridge design provides enhanced performance for low or high flow capacity steamers and flexibility for expanding to meet future needs.
• Reduces chlorine-induced corrosion.
• System is simple to install, operate and maintain.
• The Kleensteam II Twin System is shipped with two 7CB5 cartridges and no filter head plug.
• Longer lasting SS-10 Cartridge is more effective in higher alkalinity/hardness/ TDS/temperature installations.
• ScaleStick is NSF® Certified under NSF/ ANSI Standard 42 for materials.
• Easy deliming with Everpure ScaleKleen, which is fed directly into the boiler through the SR-X Bowl without use of hazardous chemicals or special piping.

Specifications

◆ Service Flow Rate - Maximum 2.5 gpm (9.5 Lpm) single cartridge , Maximum 5.0 gpm (18.9 Lpm) dual cartridge
◆ Pressure Requirements - 10 - 125 psi (0.7 - 8.6 bar), non-shock
◆ Maximum Water Temperature at Inlet 100°F (38°C)
◆ Overall Dimension - 25.5" H x 20.5" W x 7" D , (64.7 cm x 52.0 cm x 17.7 cm)
◆ Inlet Connection - 3/4" FNPT
◆ Outlet Connection - 3/4" FNPT
◆ Operating Weight - 35 lbs (15.8 kgs)
◆ Shipping Weight - 28 lbs (12.7 kgs)
◆ Electrical Connection - None required
◆ Alkalinity Range - 2 to 12 grains per gallon
