Cool Drinks
EV927501
EVERPURE QC7I SINGLE - MC2 SYSTEM
Product Description
• Improves the taste of fountain beverages and helps retain the drink’s carbonation.
• Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination.
• Proprietary Micro-Pure® II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease the life of the product.
• Protects drink system seals, pump, tubing and small orifices from clogging, corrosion and abrasive wear.
• Exclusive precoat filtration provides superior chlorine taste & odor reduction and micro-filters dirt and particles as small as 0.2* micron in size by mechanical means.
• Reduces chlorine taste & odor and other offensive contaminants that can adversely affect the taste of beverages.
• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Validated by ISO 17025 accredited lab for 99.999% reduction of Pseudomonas diminuta following the ASTM F838-05 protocol for the validation of 0.2 μm sterilizing grade filters.
Specifications
◆ Service Flow Rate -
Maximum 1.67 gpm (6.3 Lpm)
◆ Rated Capacity -
9,000 gallons (35,069 L)
◆ Pressure Requirements -
10 – 125 psi (0.7 – 8.6 bar), non-shock
◆ Temperature -
35 – 100°F (2 – 38°C)
◆ Overall Dimensions -
26.69" H x 8.04" W x 5.25" D
(67.8 cm x 20.4 cm x 13.3 cm)
◆ Inlet Connection -
3/8"
◆ Outlet Connection -
3/8"
◆ Electrical Connection -
None required
◆ Shipping Weight -
7 lbs (3.1 kgs)
◆ Operating Weight -
8 lbs (3.6 kgs)

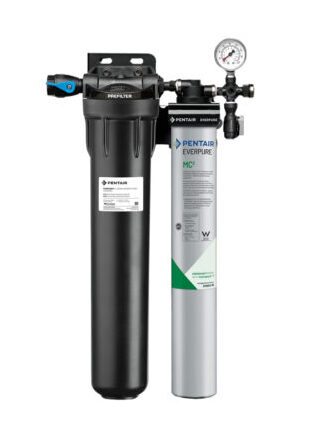

EV932801
EVERPURE® COLDRINK 1-MC2 SYSTEM
Product Description
• Improves the taste of fountain beverages and helps retain the drink’s carbonation.
• Sanitary cartridge replacement is simple, quick, and clean; internal filter parts are never exposed to handling or contamination.
• Protects drink system seals, pumps, tubing, and small orifices from clogging, corrosion, and abrasive wear.
• Proprietary Micro-Pure II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life.
• Exclusive precoat filtration provides superior chlorine taste & odor reduction and micro-filters dirt and particles as small as 0.2* micron in size by mechanical means.
• Reduces chlorine taste & odor and other offensive contaminants.
• Plated mounted system allows for easy installation and startup.
• 20” prefilter reduces dirt and particles.
• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Validated by ISO 17025 accredited lab for 99.999% reduction of Pseudomonas diminuta following the ASTM F838-05 protocol for the validation of 0.2 μm sterilizing grade filters.
Specifications
◆ Rated Capacity -
9,000 gallons (35,069 L)
◆ Service Flow Rate -
Maximum 1.67 gpm (6.3 Lpm)
◆ Pressure Requirements -
10–125 psi (0.7–8.6 bar), non-shock
◆ Temperature -
35–100°F (2–38°C)
◆ Overall Dimensions -
25.33" H x 14.15" W x 6.74" D
(64.3 cm x 35.9 cm x 17.1 cm)
◆ Inlet Connection -
3/4"
◆ Outlet Connection -
3/4"
◆ Operating Weight -
19 lbs (8.6 kgs)
◆ Shipping Weight -
10 lbs (4.5 kgs)
◆ Electrical Connection -
None required
EV932802
EVERPURE COLDRINK 2-MC2 SYSTEM
Product Description
• Improves the taste of fountain beverages and helps retain the drink’s carbonation.
• Sanitary cartridge replacement is simple, quick, and clean; internal filter parts are never exposed to handling or contamination.
• Protects drink system seals, pump, tubing, and small orifices from clogging, corrosion, and abrasive wear.
• Proprietary Micro-Pure II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life.
• Exclusive precoat filtration provides superior chlorine taste & odor reduction and micro-filters dirt and particles as small as 0.2* micron in size by mechanical means.
• Reduces chlorine taste & odor and other offensive contaminants.
• Manifold features water shut-off, flushing valve, inlet and outlet pressure gauges.
• 20” prefilter reduces dirt and particles.
• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Validated by ISO 17025 accredited lab for 99.999% reduction of Pseudomonas diminuta following the ASTM F838-05 protocol for the validation of 0.2 μm sterilizing grade filters.
Specifications
◆ Service Flow Rate -
Maximum 3.34 gpm (12.6 Lpm)
◆ Rated Capacity -
18,000 gallons (68,137.4 L)
◆ Pressure Requirements -
10–125 psi (0.7–8.6 bar), non-shock
◆ Inlet Connection -
3/4"
◆ Outlet Connection -
3/4"
◆ Shipping Weight -
20 lbs (9 kgs)
◆ Operating Weight -
29 lbs 13.1 kgs)
◆ Electrical Connection -
None required
EV932803
EVERPURE COLDRINK 3-MC2 SYSTEM
Product Description
• Improves the taste of fountain beverages and helps retain the drink’s carbonation.
• Sanitary cartridge replacement is simple, quick, and clean; internal filter parts are never exposed to handling or contamination.
• Protects drink system seals, pump, tubing, and small orifices from clogging, corrosion, and abrasive wear.
• Proprietary Micro-Pure II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life.
• Exclusive precoat filtration provides superior chlorine taste & odor reduction and micro-filters dirt and particles as small as 0.2* micron in size by mechanical means.
• Reduces chlorine taste & odor and other offensive contaminants.
• Manifold features water shut-off, flushing valve, inlet and outlet pressure gauges.
• 20” prefilter reduces dirt and particles.
• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Validated by ISO 17025 accredited lab for 99.999% reduction of Pseudomonas diminuta following the ASTM F838-05 protocol for the validation of 0.2 μm sterilizing grade filters.
Specifications
◆ Service Flow Rate -
Maximum 5 gpm (18.9 Lpm)
◆ Rated Capacity -
27,000 gallons (102,206 L)
◆ Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
◆ Temperature -
35 - 100°F (2 - 38°C)
◆ Overall Dimensions -
25.59" L x 25.75" W x 6" D
(64.9 cm x 65.4 cm x 15.2 cm)
◆ Inlet Connection -
3/4"
◆ Outlet Connection -
3/4"
◆ Operating Weight -
35 lbs (15.8 kgs)
◆ Shipping Weight -
23 lbs (10.4 kgs)
◆ Electrical Connection -
None required

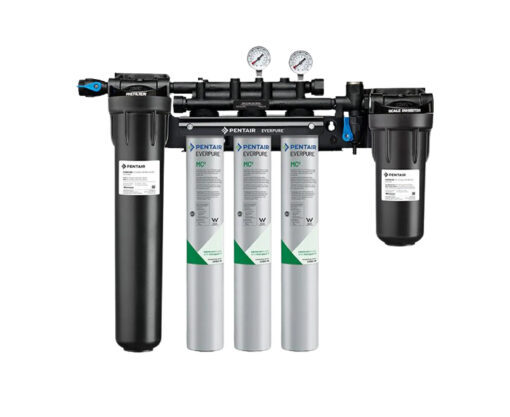

EV932806
HIGH FLOW CSR TRIPLE -MC² SYSTEM
Product Description
• One system provides premium quality water to high flow fountain dispensers, coffee makers and ice machines.
• Sanitary cartridge replacement is simple, quick and clean; internal filter parts are never exposed to handling or contamination.
• Proprietary Pentair§ Everpure§ Micro-Pure§ II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life.
• Exclusive precoat filtration provides superior chlorine taste & odor reduction and micro-filters dirt and particles as small as 0.2* micron in size by mechanical means.
• Reduces chlorine taste & odor and other offensive contaminants that can adversely affect the taste of beverages.
• Increases the overall efficiency of equipment.
• 20" prefilter captures larger dirt particles.
• Pentair Everpure SR-X with Pentair Everpure SS-IMF Cartridge inhibits scale buildup in ice machines and coffee brewers.
• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
Specifications
◆ Service Flow Rate -
Maximum 5 gpm (18.9 Lpm)
◆ Rated Capacity -
27,000 gallons (102,206 L)
◆ Pressure Requirements -
10 – 125 psi (0.7 – 8.6 bar), non-shock
◆ Temperature -
35 – 100°F (2 – 38°C)
◆ Overall Dimensions -
25.59" L x 30" W x 6.74" D (
64.9 cm x 76.2 cm x 17.1 cm)
◆ Inlet Connection -
3/4"
◆ Outlet Connection -
3/4"
◆ Operating Weight -
49 lbs (22.2 kgs)
◆ Shipping Weight -
39 lbs (17.6 kgs)
◆ Electrical Connection -
None required
