RO SYSTEMS

Model/Specs

E-250

E-500

E-1000

E-1500

E-2000

Duty Cycle

8/24Hrs

8/24Hrs

8/24Hrs

8/24Hrs

8/24Hrs

Max-O/P Ltrs/Day


2000

4000

8000

12000

16000

Input TDS (ppm)


<1000

<1000

<1000

<1000

<1000

Input THC (ppm)


<400

<400

<400

<400

<400

Turbidity (NTU)


<1

<1

<1

<1

<1

Recovery Upto


40%

46%

18%

51%

60%

Min Input (Ltrs)


1100

1200

2500

2800

3500

Power (kW)


1.48

1.48

3.1

3.33

4.01

Dimensions W x D x H mm


800 x 800x 1800

800 x 800x 1800

800 x 2000x 1800

1000 x 2000 x 2200

1000 x 2000 x 2200

Net Weight (Kgs)


106

133

106

187

226

Membranes


4040 x 1

4040 x 2

4040 x 4

4040 x 6

8040 x 2

Inlet Size


DN20

DN20

DN25

DN25

DN40

Permeate Size


DN15

DN15

DN25

DN25

DN25

Pre-Filtration


2 Stage

2 Stage

3 Stage

3 Stage

3 Stage

Operating Parameters

Temperature

20-40ᵒC

Pressure Inlet

1.5-3.5 bar

Salt Rejection

90-95%

Operating Pressure

7-15 bar

Features

  • High-Quality Product
  • Ease of Operation
  • Fully Automatic Operation – With Auto Shut Off/On
  • Microprocessor-based control
  • Pre and Post Filtration Pressure Gauges
  • Digital Conductivity Meter
  • SS Frame Mounted
  • Durable and Serviceable
  • Service Support

Applications

  • Safe Drinking Water
  • Process Ingredient Water
  • Boiler Feed Water
  • Food & Beverage
  • Other Applications

Residential RO Systems

1. UTS 50

2. UTS 100

Technical Specification

New Breakthroughs

Fill a cup in 8 seconds* with a high flow rate direct to faucet. Faster flow ensures no ore waiting.
Lasting Green technology for greater water savings.
The Green Reverse Osmosis (RO) system produces water at 68.8%** efficiency, exceeding Chinese National Grade a water standards by 15%***
Large capacity filter membrane with shorter channels, faster flow, and stronger dirt resistance, with membrane lifespan lasting up to 3 years.
Dual layer protection for better health and peace of mind.
0.2u high density, folded microfiltration core in combination with a 5u scale inhibition composite carbon rod removes impurities and ensures lasting efficiency.
5 Sensors for Smart and Timely Control
Smart detection with 5 sensors for intelligent auto control to maintain optimal condition and ensure safe and clean water for the whole family.

Model and part number

1. Everpure RO-200U Reverse Osmosis System SA31207
2. 4FC-CN Fiberdyne cartridge SA21039
3. Everpure reverse Osmosis membrane SA21035
4. Phosphate cartridge LSY-5 SA21036

Features/Benifits

1. Patented quick-change filter cartridge replacement.
2. Satisfies the demand of various water consumption equipment.
3. High water efficiency water yield upto 60%.
4. Reduces downtime, cuts maintenance costs from scaling, and lowers energy consumption
5. Reduces chlorine taste and odor that affect the taste of water and beverages

Installation tips

1. The feed water source must be chlorinated municipal tap water.
2. Select a mouting location capable of supporting the 15kg weight of the system.
3. A 3/8’’ (9.5mm) water pipe is recommended before connecting the machine.
4. Allow 20cm clearance below the cartridge for easy replacement and maintenance.
5. Pipes, tubes, and components connected to the RO system’s water outlet must be suitable for high-purity water.
6. Please read the product manual and conduct the detailed installation steps in the manual.

Operational tips

1. Recommended to replace the 4FC-CN cartridge every 6-12 months.
2. Recommended to replace the LSY-5 phosphate scale inhibition cartridge every 1-2 years.
3. Recommended to replace the reverse osmosis membrane every 1-2 years.
4. Please replace filter cartridge regularly to ensure safe water quality.
5. Flushing and activation must be performed in accordance with the product manual every time after a filter cartridge is installed or replaced.

Applications

1. Coffee machines, steamers, combination ovens and ice machines.
Capacity:
RO water : upto 200GPD
Blended water : upto 400GPD

Specifications

Model and Part Number

Everpure RO-200 Reverse Osmosis System SA31207

Overall dimension (mm)

410x205x500

Tank size (mm)

277x371

MOH rated flow rate (L/min)

When blending value is closed , only RO water is produced : 0.425

MOH rated capacity (L)

When blending value is open, blended water is produced : 0.85

Maximum working water pressure

When blending value is closed , only RO water is produced :5500

Temperature

When blending value is open, blended water is produced : 5500

Shipping weight (kg)

Range of working pressure : 51-108 PSI

Operating weight (kg)

Range of Feed water pressure : 29 50PSI

Voltage and power cords

Ambient temperature : 2-40°C

Water inlet/outlet Waste

Feed water temperature : 5-38°C

Water pipe

15 15 220V~/50Hz ¼’’0D ¼’’0D

Feed water flow

To be  determined depending on the equipment`s tank pressure and water pipe size.

Note:

All pollutants removed by this drinking system are unwanted substances in water. Do not use water that is contaminated by micro-organisms or has not been adequately sterilized and without quality guarantee before or after the system . In the case where the sterilized water contains filterable cysts. A system capable of removing cysts may be selected .

Warranty

The warrant period is one year from the date of purchase. The limited warranty scope converse nonhuman defects of the product, and the warranty service is provided only to the first purchase and installer. The manufacturer is not liable for an man-made damage.

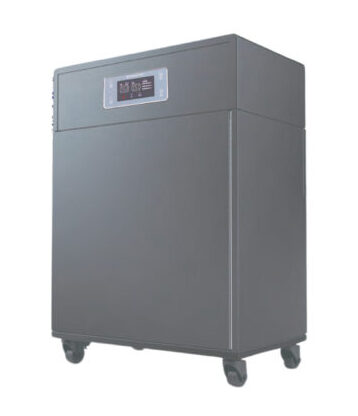

CMRS-B REVERSE OSMOSIS

Parameter

Parameter

Recommended value

Acceptable range

Recommended value

Acceptable range

TDS

(Total Dissolved Solids)

125-175 ppm

75-225 ppm

50 ppm

30-200 ppm

Hardness

68 ppm

17-85 ppm

60 ppm

25-120 ppm

Total Alkalinity

40 ppm

<100 ppm

60 ppm

25-120 ppm

PH

7.0

6.8-7.4

7.0

6.0-7.5

Sodium

10 ppm

At or near 10 ppm

10 ppm

<60 ppm

Total Chlorine

0 ppm

<0.05 ppm

0 ppm

0 ppm

MULTI STAGE FILTRATION


Filter Element

Features

STAGE 1

Everpure EV-FD05C4 Filter Cartridge

(0.5 micron Fibredyne Carbon)

Removes particles, chlorine, organics, other impurities

STAGE 2

Phosphate (Scale Inhibitor)

Inhibits limescale buildup & prevent RO membrane from fouling

STAGE 3

Reverse Osmosis Membrane

600 Gallons per Day

Reduces TDS & remove harmful heavy metals

STAGE 4

Everpure EV-FD05C4 Filter Cartridge

(0.5 micron Fiberdyne Carbon)

Final stage of polishing to improve taste

Features

  • Ideal solution for installation in complex spaces.
  • Complete Point of Use Solution for Your Store.
  • Suitable for various types of food and beverage stores.
  • One machine to solve the water purification needs of the whole store.
  • Adjustable TDS.
  • Customized beverages.
