RO spare parts & replacement cartridges
EV962716
EVERPURE 7FS-BW REPLACEMENT CARTRIDGE
Features
• For exclusive use as pre-treatment to an RO Membrane/System.
• Sanitary cartridge replacement is simple, quick and clean; internal filter parts are never exposed to handling or contamination.
• Carbon filter reduces chlorine taste & odor and other offensive contaminants.
• Controls scale formation to extend membrane life.
• Effectively filters dirt and particles as small as five (5) microns in size.
Specifications
◆ Service Flow Rate -
Maximum 2.5 gpm (9.5 Lpm)
◆ Rated Capacity -
30,000 gallons (113,562 l)
◆ Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
◆ Temperature -
35°F - 100°F (2 - 38°C)
◆ Overall Dimensions -
20.75" L x 3.25" D (52.7 cm x 8.3 cm)
EV961256
EVERPURE MC2 FILTER CARTRIDGE
Features
• Reduces chlorine taste & odor and other offensive contaminants that can adversely affect the taste of beverages.
• Sanitary cartridge replacement is simple, quick and clean; internal filter parts are never exposed to handling or contamination.
• Protects drink system seals, pump, tubing and small orifices from clogging, corrosion and abrasive wear.
• Exclusive precoat filtration provides superior chlorine taste & odor reduction and micro-filters dirt and particles as small as 0.2* micron in size by mechanical means.
• Improves the taste of fountain beverages and helps retain the drink’s carbonation.
• Proprietary Everpure Micro-Pure® II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life.
• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Validated by ISO 17025 accredited lab for 99.999% reduction of Pseudomonas diminuta following the ASTM F838-05 protocol for the validation of 0.2 μm sterilizing grade filters.
Specifications
◆ Service Flow Rate -
Maximum 1.67 gpm (6.3 Lpm)
◆ Rated Capacity -
9,000 gallons (34,068 L)
◆ Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
◆ Temperature -
35 - 100°F (2 - 38°C)
◆ Overall Dimensions -
20.75" L x 3.25" D (52.7 cm x 8.2 cm)
EV962713

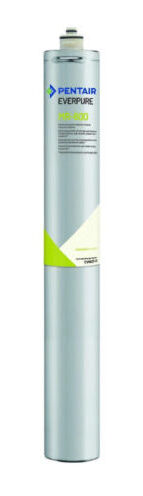

EVERPURE MR-600 MEMBRANE CARTRIDGE
Features
• Reduces Total Dissolved Solids.
• Easy quick-change cartridges.
• Reduces limescale buildup that can help minimize maintenance and downtime.
• Reduces chlorides to help prevent corrosion to ensure reliable, efficient operation
Cartridge
◆ Overall Dimensions -
25.47" H x 3.25" Dia (64.7 cm x 8.3 cm)
◆ Operating Pressure -
40 – 125 psi (2.7 – 8.6 bar)
◆ Water Temperature -
35 – 100°F (2 – 38°C)
◆ Shipping Weight -
3.5 lbs (1.59 kgs)
◆ Inlet TDS -
1,000 ppm maximum recommended
Performance
◆ Daily Production
Up to 600 gpd (2,271 Lpd) nominal at 77°F (25°C), 750 ppm NaCl, 60 psi (4.1 bar) feed water pressure; production will vary based on water supply temperature and pressure.
◆ TDS Reduction -
Yes
EV962703
EVERPURE MR-225 REPLACEMENT CARTRIDGE
Features
• Mineral reduction cartridge for high TDS waters.
• A reduction in Total Dissolved Solids (TDS) makes the water less likely to impart undesirable tastes in beverages, sauces, soups and other food products.
• Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination.
• Improves equipment life and performance by removing at least 90%+ of all dissolved solids using Reverse Osmosis Separation Technology.
• Especially useful on steamers, warmers, steam boilers and other evaporative equipment that are not emptied each day.
• Heating surfaces maintain peak heat transfer efficiency, reducing cycle times and energy consumption.
• Limits limescale buildup, which can cause excessive machine downtime and maintenance costs.
Specifications
◆ Overall Dimensions -
17" L x 3.25" dia. (43.1 x 8.3 cm)
◆ Rated Capacity -
225 gallons per day (851 Liters per day)
◆ Service Flow Rate -
Dependant on water volume and pressure in storage tank(s), and line size(s) to equipment.
◆ Pressure Requirements -
40 - 100 psi (2.7 - 6.8 bar), non-shock
◆ Temperature -
35 - 100°F (2 - 38°C)
◆ Inlet TDS -
1,500 ppm max recommended
EV312828
Capillary Flow Restrictor – 1052ml/mn (WHITE)
Description
Capillary Flow Restrictors easily insert into 1/4″ OD tubing located on the membrane waste line (aka concentrate, brine or rinse). The length of the flow control capillary line determines the flow restriction, shorter lengths allow water to pass through at a greater rate.
Specifications
◆ Compatible with all Quick-Connect and compression fittings
◆ FDA food grade material
◆ Fits 1/4″ OD tubing
◆ Flow Rate: 1052 ml/min
EV312827
Capillary Flow Restrictor – 735 ml/mn (BLUE)
Description
Capillary Flow Restrictors easily insert into 1/4″ OD tubing located on the membrane waste line (aka concentrate, brine or rinse). The length of the flow control capillary line determines the flow restriction, shorter lengths allow water to pass through at a greater rate.
Specifications
◆ Compatible with all Quick-Connect and compression fittings
◆ FDA food grade material
◆ Fits 1/4″ OD tubing
◆ Flow Rate: 735 ml/min
EV313865
Capillary Flow Restrictor – 1577 ml/mn (GREY)
Description
Capillary Flow Restrictors easily insert into 1/4″ OD tubing located on the membrane waste line (aka concentrate, brine or rinse). The length of the flow control capillary line determines the flow restriction, shorter lengths allow water to pass through at a greater rate.
Specifications
◆ Compatible with all Quick-Connect and compression fittings
◆ FDA food grade material
◆ Fits 1/4″ OD tubing
◆ Flow Rate: 1577 ml/min
EV312830
Capillary Flow Restrictor – 125 ml/mn (RED)
Description
Capillary Flow Restrictors easily insert into 1/4″ OD tubing located on the membrane waste line (aka concentrate, brine or rinse). The length of the flow control capillary line determines the flow restriction, shorter lengths allow water to pass through at a greater rate.
Specifications
◆ Compatible with all Quick-Connect and compression fittings
◆ FDA food grade material
◆ Fits 1/4″ OD tubing
◆ Flow Rate: 125 ml/min
EV312831
Capillary Flow Restrictor –189 ml/mn (BROWN)
Description
Capillary Flow Restrictors easily insert into 1/4″ OD tubing located on the membrane waste line (aka concentrate, brine or rinse). The length of the flow control capillary line determines the flow restriction, shorter lengths allow water to pass through at a greater rate.
Specifications
◆ Compatible with all Quick-Connect and compression fittings
◆ FDA food grade material
◆ Fits 1/4″ OD tubing
◆ Flow Rate: 189 ml/min
EV312832
Capillary Flow Restrictor – 525 ml/mn (GREEN)
Description
Capillary Flow Restrictors easily insert into 1/4″ OD tubing located on the membrane waste line (aka concentrate, brine or rinse). The length of the flow control capillary line determines the flow restriction, shorter lengths allow water to pass through at a greater rate.
Specifications
◆ Compatible with all Quick-Connect and compression fittings
◆ FDA food grade material
◆ Fits 1/4″ OD tubing
◆ Flow Rate: 525 ml/min
EV312833
Plug 1/4" OD
Description
S-Lok 1/4" O.D. 316 Stainless Steel Plug
Specifications
◆ Connection: 1/4" O.D.
◆ Material: 316 Stainless Steel
◆ Ferrule Type: Double Ferrule
◆ Manufacture: S-Lok
◆ Fitting Type: Plug
EV312808
Valve Solenoid
Description
A solenoid valve is electromechanically controlled using magnetics. When current is passed to the magnet, the valve is actuated, automatically opening or closing the valve as required. Solenoids are commonly used in restaurant equipment to activate water flow, syrups, gas and more.
Specifications
◆ Dimensions & Details:
◆ Width: 2.4 in (6.1 cm)
◆ Height: 1.65 in (4.19 cm)
◆ Length: 3.05 in (7.75 cm)
◆ Unit of Measure: Each (EA)
EV314907
Everpure MRS Controller Service Kit (MRS-600)
Description
Suits Everpure MRS-600HE and MRS-600HEII Models.
EV313151
PUMP, MRS-600HE-II, PERMEATE
Description
The Everpure MRS replacement pumps for MRS-600HE-II Permeate systems provide high-quality water for a variety of culinary applications. These high-output, high-efficiency pumps are constructed with long-lasting components and may be installed and mounted in any location. These elements contribute to consistent, long-lasting operation, enhancing water filtration safety and performance.
EV313152
Pump, Mrs-600He-IIi, Boost
Description
The Everpure MRS replacement pumps for MRS-600HE-II Boost systems provide high-quality water for a variety of culinary applications. These high-output, high-efficiency pumps are constructed with long-lasting components and may be installed and mounted in any location. These elements contribute to consistent, long-lasting operation, enhancing water filtration safety and performance.
EV313196
Install Kit RO-Mate
Description
Pressure relieve valve for MRS 600 system.
CY255-213
Strainer 1/2" NPSM
Description
Inlet water Strainer for MRS 600 system.
EV312952
Transducer
Description
Transducer relieve valve for MRS 600 system.
