Spare parts & Replacement Cartridges
EV969166
EVERPURE 2FC5 CARTRIDGE
Features
◆ Effectively filters dirt and particles as small as 5 microns in size.
◆Increased capacity for extended reduction of chemical and mechanical contaminants.
◆ Proprietary Fibredyne II filtration media effectively inhibits the growth of bacteria on the filter media which can decrease product life.
◆ Reduces chlorine taste & odor and other offensive contaminants that can adversely affect the taste of beverages.
◆ Improves the taste of fountain beverages and helps retain the drink’s carbonation.
◆ Protects drink system seals, pump, tubing and small orifices from clogging, corrosion and abrasive wear.
◆ Compatible with QC7I Single, QL1, and QL3B heads.
◆ Sanitary cartridge replacement is simple, quick and clean; internal filter parts are never exposed to handling or contamination.
◆ NSF Certified under NSF/ANSI Standard 42.
Specifications
• Overall Dimensions -
10.25" (26.0 cm) ,
Diameter: 3.25" (8.26 cm)
• Capacity -
6,000 gal (22,712 L) ,
Pressure Requirements,
10-125 psi (0.7–8.6 bar), non-shock
• Temperature -
35 - 100°F (2 - 38°C)
• Electrical Connection -
None required
EV963426
EVERPURE 2H-L FILTER CARTRIDGE
Features
◆ Exclusive precoat filtration technology reduces dirt and particles as small as 0.5 micron in size.
◆ Reduces lead below the Federal Action Level of 10 ppb.
◆ Inhibits limescale buildup* in water-using equipment.
◆ Easy, quick-change cartridge replacement.
◆ NSF/ANSI Standard 42 certified to reduce chlorine taste & odor and Particulate Class I.
◆ NSF/ANSI Standard 53 certified to reduce lead and cysts such as Cryptosporidium and Giardia by mechanical means.
Specifications
Cartridge
• Overall Dimensions Length -
10.16" (25.8 cm) ,
Diameter: 3.25" (8.26 cm)
• Operating Pressure -
10 – 125 psi (0.7 – 8.6 bar)
• Water Temperature -
35 – 100°F (2 – 38°C)
• Shipping Weight -
1 lb (2.2 kg)
Performance
• Service Flow Rate -
0.5 gpm (1.89 lpm)
• Rated Capacity -
750 Gallons (2,839 L)
• Chlorine Reduction -
Yes
• Taste & Odor Reduction -
Yes
• Particulate Reduction -
Yes
• Lead Reduction -
Yes
• Cyst Reduction -
Yes
EV961716
EVERPURE 4CB5 FILTER CARTRIDGE
Features
◆ Carbon block filter finely polishes water for high-quality beverage and food applications.
◆ Sanitary cartridge replacement is simple, quick, and clean; internal filter parts are never exposed to handling or contamination.
◆ Reduces chlorine taste & odor and other offensive contaminants that can adversely affect the taste of water and beverages.
◆ Reduces extra fine dirt and particles as small as five (5) microns in size.
◆ Does not remove fluoride.
◆ NSF Certified under NSF Standards 42
Specifications
• Service Flow Rate -
Maximum 1.67 gpm (6.3 Lpm)
• Rated Capacity -
6,000 gallons (22,710 L)
• Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
• Temperature -
35 - 100°F (2 - 38°C)
• Overall Dimensions -
14.5" L x 3.25" D. (36.9 cm x 8.2 cm)

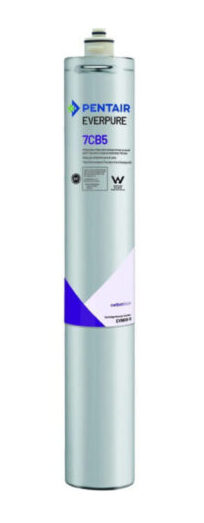

EV961811
EVERPURE 7CB5 FILTER CARTRIDGE
Features
◆ Reduces chlorine taste & odor and other offensive contaminants that can adversely affect the taste of water and beverages.
◆ Sanitary cartridge replacement is simple, quick and clean; internal filter parts are never exposed to handling or contamination.
◆ Finely polishes water for high quality beverage and food applications.
◆ Reduces extra fine dirt and particles as small as five (5) microns in size.
◆ Carbon block filter.
◆ NSF Certified under NSF/ANSI Standard 42.
Specifications
• Service Flow Rate -
Maximum 2.5 gpm (9.46 Lpm)
• Rated Capacity -
10,000 gallons (37,854 L)
• Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
• Temperature -
35 - 100°F (2 - 38°C)
• Overall Dimensions -
20.75" L x 3.25" D (52.7 cm x 8.2 cm)
EV961821
EVERPURE 7CB5-S FILTER CARTRIDGE
Features
◆ Carbon block filter finely polishes water for high quality beverage and food applications.
◆ Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination.
◆ NSF Certified under NSF/ANSI Standard 42.
◆ Reduces chlorine taste and odor and other offensive contaminants that can adversely affect the taste of water and beverages.
◆ Reduces chlorine taste and odor and other offensive contaminants that can adversely affect the taste of water and beverages.
◆ Reduces limescale buildup that can cause excessive machine downtime and increased maintenance costs.
◆ Plus, scale reduction lowers energy costs.
Specifications
• Overall Dimensions -
20.75" L x 3.25" dia. (52.7 x 8.2 m)
• Capacity -
10,000 gallons (37,854 L)
• Service Flow Rate -
Maximum 2.5 gpm (9.46 Lpm)
• Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
• Temperature -
35 - 100°F (2 - 38°C)
• Electrical Connection -
None required
EV953412
EVERPURE EC110 PREFILTER CARTRIDGE
Features
◆ 10-micron sediment filtration.
◆ Tightly spun EC110 sediment cartridge delivers 10-micron nominal filtration.
◆ Fits most 10" drop-in housings.
◆ Filters out large dirt and rust particles.
◆ Extends the life of primary filter cartridges.
◆ Durable slim bowl design makes cartridge change outs easy to handle.
◆ Clear housing lets you visually inspect trapped particles and makes determining when to change the cartridge easy.
Specifications
• Overall Dimensions 9.75" L x 3.38" dia. (24.7 x 8.6 cm)
EV953426
EVERPURE EC210 PREFILTER CARTRIDGE
Features
◆ 10-Micron sediment filtration.
◆ Tightly spun EC210 sediment cartridge delivers 10-micron nominal filtration.
◆ Fits most 20” drop-in housings.
◆ Filters out large dirt and rust particles.
◆ Extends the life of primary filter cartridges.
◆ Durable slim bowl design makes cartridge change outs easy to handle.
◆ Clear housing lets you visually inspect trapped particles and makes determining when to change the cartridge easy.
Specifications
• Overall Dimensions 20" L x 3.38" dia. (50.8 x 8.6 cm)
EV979902
EVERPURE SS-10 SCALESTICK CARTRIDGE
Features
◆ Features Hydroblend™ compound, a unique blend that inhibits mineral scale deposits and provides a corrosion protection in low flow water-fed equipment.
◆ Patented design dispenses a controlled amount of Hydroblend™ for long term protection and provides greater effectiveness than standard phosphate treatments.
◆ Translucent cartridge allows simple visual monitoring of product usage and ensures against wasteful premature cartridge replacement.
◆ Integral feed cartridge fits most standard 10" housings.
◆ Unaffected by high temperatures, the SS-10 cartridge accomodates a wide variety of applications.
◆ SS-10 cartridge fits all current SR-X housings and all existing old style AR-X housings.
Specifications
• Service Flow Rate -
Maximum 0.1 - 6 gpm (0.3 - 22.7 Lpm)
• Capacity -
Approximately six (6) months. Capacity will vary depending on application and water usage. On flow rates less than 1 gpm (3.78 Lpm), capacities may be reduced.
• Temperature -
Maximum 150°F (65.5°C)* If inlet feed water temperature is above 125°F (51.7°C) a hot water housing must be used.
• Overall Dimensions -
10.062" L x 1.312" D (25.5 cm x 3.3 cm)
EV979932
EVERPURE SS-IMF SCALESTICK CARTRIDGE
Features
◆ Features Hydroblend™ compound, a unique blend.
◆Translucent cartridge allows simple visual monitoring of product usage and ensure against wasteful premature cartridge replacement.
◆ Integral feed cartridge fits Everpure model IMF housings.
◆ SS-IMF fits all old style 8" IMF Housings.
◆ Spacer (EV3114-69) available for adapting SS-IMF to 10" bowl.
◆ Inhibits mineral scale deposits and provides corrosion protection in low flow water-fed equipment.
◆ Patented design dispenses a controlled amount of Hydroblend™ for long-term protection and provides greater effectiveness than standard phosphate treatments.
Specifications
• Overall Dimensions -
6.875" L x 1.312" dia. (17.4 x 3.3 cm)
• Capacity -
Approximately six (6) months. Capacity will vary depending on application and water usage. On flow rates less than one (1) gpm (3.78 Lpm), capacities may be reduced.
• Service Flow Rate -
Maximum 0.1 - 6 gpm (0.3 - 22.7 Lpm)
• Temperature -
Maximum 150°F (65.5°C) If the inlet feed water temperature is above 125°F (51.67°C) a hot water housing must be used.
EV960000
EVERPURE 4C CARTRIDGE
Features
◆ Provides clear, fresh, premium quality ingredient water for great tasting cold beverages.
◆ Sanitary cartridge replacement is simple, quick and clean; internal filter parts are never exposed to handling or contamination.
◆ Exclusive submicron technology provides superior chlorine taste & odor reduction and micro-filters dirt and particles as small as 0.5 micron in size by mechanical means.
◆ NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
◆ NSF® Certified under NSF/ANSI Standards 42 and 53.
◆ Does not remove fluoride.
Specifications
• Rated Capacity -
3,000 gallons (11,355 L)
• Service Flow Rate -
Maximum 0.5 gpm (1.9 Lpm)
• Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
• Temperature -
35 - 100°F (2 - 38°C)
• Overall Dimensions -
14.5" L x 3.25" D (36.8 cm x 8.2 cm)

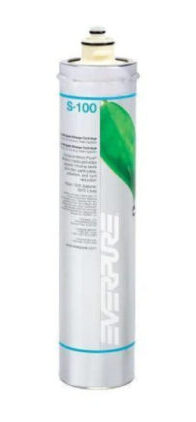

EV960104
Everpure S100 (A) Replacement Cartridge
Features
◆ The Everpure S100 Cartridge effectively reduces the following contaminants:
◆Cysts, including Giardia lamblia, Entamoeba histolytica, and Cryptosporidium parvum
◆ Asbestos
Additionally, it addresses these substances:
◆ Chlorine taste and odor
◆Dirt and cloudiness
◆ Mold and algae
◆ Oxidized iron
◆ Oxidized manganese
◆ Oxidized sulfides
◆ Particles sized 1/2 micron and larger
*Results verified by Everpure, LLC.
Specifications
• Operating Temperature: 35-100 °F (2-38 °C) cold water use only
• Operating Pressure: 10-125 psi. (0.7-8.6 bar), non-shock
• Flow Rate: 0.5 gal./min. (1.9 L/min.)
• Capacity: 1,500 gal. (5,670 L)
EV960601
Everpure 7SI Cartridge
Features
◆ The Everpure EV960601 effectively filters dirt and particles as small as half a micron in size out of the water supply for ice machine applications. This filter cartridge utilises depth filtration and Fibredyne media for superior dirt-holding capability.
◆ The 7SI filter leaves chlorine and chloramines within the water that is supplied to equipment which helps to reduce slime growth within the ice machine. This helps to reduce machine maintenance, service costs, and downtime caused by scale build-up and general maintenance of machine parts.
◆ Sanitary replacement of this cartridge is simple and clean, with no internal filter parts exposed to handling or contamination. Designed for use with Pentair Everpure Insurice and Insurice PF Manifold Systems.
Specifications
• Dimensions -
52.7 cm x 8.26 cm
• Capacity -
94,635
• Pressure -
10-125 psi
• Temperature -
2-38 degrees Celsius
EV960741
EVERPURE 6TO-BW REPLACEMENT CARTRIDGE
Features
◆ Prefilter for RO membranes which are sensitive to chlorine.
◆ Granular activated carbon reduces chlorine taste & odor and other unwanted contaminants.
◆ Taste and odor filter for extremely turbid water.
◆ Effectively reduces chloramines from water.
Specifications
• Service Flow Rate -
Maximum 1.5 gpm (5.68 Lpm)
• Rated Capacity -
24,000 gallons (90,850 Liters)
• Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
• Temperature -
35 - 100°F (2 - 38°C)
• Overall Dimensions -
17" L x 3.25" D (52.7 cm x 8.3 cm)
• Contents -
Granular activated carbon
EV961232
EVERPURE i40002 FILTER CARTRIDGE
Features
◆ Proprietary Micro-Pure II filtration media effectively inhibits the growth of bacteria on the filter media which can decrease product life.
◆ Sanitary cartridge replacement is simple, quick, and clean. Internal filter parts are never exposed to handling or contamination.
◆ Reduces water-related ice machine problems caused by scale buildup from dirt and dissolved minerals.
◆ Reduces chlorine taste and odor and other offensive contaminants.
◆ Self-contained scale inhibitor feed keeps ice machines functioning at full capacity.
◆ For use when higher capacity filtration is needed.
◆ Reduces maintenance and service costs by reducing scale and clogging of distribution lines, evaporator plate and pump.
◆ Exclusive precoat filtration provides superior chlorine taste and odor reduction and micro-filters dirt and particles as small as 0.5 micron in size by mechanical means.
◆ NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
Specifications
• Overall Dimensions -
25" L x 3.25" dia. (63.5 x 8.2 cm)
• Capacity -
12,000 gallons (45,424 L)
• Service Flow Rate -
Maximum 1.67 gpm (6.3 Lpm)
• Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
• Temperature -
35 - 100°F (2 - 38°C)
• Electrical Connection -
None required
EV961802
EVERPURE OCS2 FILTER CARTRIDGE
Features
◆ Unique filter blend by Pentair™ Everpure™ uses activated carbon to reduce chlorine taste & odor and other offensive odors.
◆ Easy, sanitary, quick-change filter replacement.
◆ Saves energy by reducing scale buildup.
◆ Exclusive precoat filtration provides chlorine taste & odor reduction, and micro-filters dirt and particles as small as 0.2-micron in size by mechanical means.
◆ Proprietary Pentair Everpure Micro-Pure® II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life.
◆ Reduces cysts such as Cryptosporidium and Giardia by mechanical means.
Specifications
• Service Flow Rate -
Maximum 0.5 gpm (1.9 Lpm)
• Rated Capacity -
1,500 gallons (5,678 L) or 3,000 pots
• Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
• Temperature -
35 - 100°F (2 - 38°C)
• Overall Dimensions -
10.25" L x 3.25" D (26.0 cm x 8.2 cm)
• Electrical Connection -
None required
EV961222
EVERPURE i20002 FILTER CARTRIDGE
Features
◆ Proprietary Micro-Pure II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life.
◆ Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination.
◆ Reduces water-related ice machine problems caused by scale buildup from dirt and dissolved minerals.
◆ Self-contained scale inhibitor feed keeps ice machines functioning at full capacity.
◆ Reduces maintenance and service costs by reducing scale and clogging of distribution lines, evaporator plate and pump.
◆ Exclusive precoat filtration provides superior chlorine taste and odor reduction and micro-filters dirt and particles as small as 0.5 micron in size by mechanical means.
◆ NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
Specifications
• Overall Dimensions -
20.75" L x 3.25" dia. (52.7 x 8.2 cm)
• Capacity -
9,000 gallons (34,069 L)
• Service Flow Rate -
Maximum 1.67 gpm (6.3 Lpm)
• Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
• Temperature -
35 - 100°F (2 - 38°C)
• Electrical Connection -
None required
EV962705
EVERPURE® 7CC-BW REPLACEMENT CARTRIDGE
Features
◆ Protects equipment by reducing the corrosive tendencies of low TDS content waters.
◆ Increases water hardness by introducing a small amount of calcium carbonate minerals into low hardness/TDS waters.
◆ This controlled mineral addition is desirable for coffee and other applications that require some hardness to achieve optimum results.
◆ Improves electronic level control sensitivity by increasing water conductivity.
Specifications
• Service Flow Rate -
Maximum 0.5 gpm (1.9 Lpm)
• Pressure Requirements -
10 - 125 psi (0.7 - 8.6 bar), non-shock
• Temperature -
35°F - 100°F (2 - 38°C)
• Overall Dimensions -
20.75" L x 3.25" D (52.7 cm x 8.3 cm)
• Contents -
Granules of calcium carbonate; will increase the hardness of water
155225-43
PENTEK P SERIES SPUN-BONDED POLYPROPYLENE CARTRIDGES
Features
◆ Manufactured from pure 100% polypropylene.
◆ Designed for purity and chemical compatibility.
◆ Spun fibres form a true gradient density from outer to inner surfaces.
◆ Nominal 1, 5, 25-micron rating.
◆ Lengths: 4.88”, 10”, 20”, 30, 40”
Specifications
• Maximum Dimensions -
2. 38" x 9.88" (60.5 mm x 251 mm)
• Rating (Nominal) -
1 micron
• Initial ∆P (Psi) @ Flow Rate (Gpm) -
0.6 psi @ 5 gpm (<0.04 bar @ 18.9 Lpm)
155263-03
Pentek RFFE20-BB Iron Reduction 20" Big Blue Filter
Features / Benefits
◆ High rejection rates
◆ High flow capacities
◆ Superior quality and costs savings
Functionality
• high purity chemicals
• bottled water
• pharmaceuticals, cosmetics
Specifications
• Brand – Pentek
• Model - RFFE 20-BB
• Model 2 - RFFE 20-BB
Dimensions / Weights
• Length in inch – 20.00
• Length in cm – 50.80
• Quantity per case – 4 pieces
155304-43
PENTEK P SERIES SPUN-BONDED POLYPROPYLENE CARTRIDGES
Features / Benefits
◆ Manufactured from pure 100% polypropylene.
◆ Designed for purity and chemical compatibility.
◆ Spun fibres form a true gradient density from outer to inner surfaces.
◆ Nominal 1, 5, 25-micron rating.
◆ Lengths: 4.88”, 10”, 20”, 30, 40”
Specifications
• Filter Media -
Polypropylene fibres
• Temperature Rating -
– 40–145°F (4.462.8°C)
• Maximum Dimensions -
2.38” x 20” (60.5 mm x 508 mm)
• Rating (Nominal) -
1 micron
• Initial ∆P (Psi) @ Flow Rate (Gpm) -
0.6 psi @ 10 gpm,
(<0.04 bar @ 37.9 Lpm)
155355-43
PENTEK DGD SERIES GRADIENT DENSITY CARTRIDGES
Features
◆ Manufactured from pure 100% polypropylene.
◆ Designed for purity and chemical compatibility.
◆ Spun fibers form a gradient density from outer to inner surfaces.
◆ Nominal 1, 5, 25 micron ratings.
◆ Lengths: 10", 20"
Specifications
• Filter Media -
Polypropylene
• Temperature Rating -
40-145°F (4.4-62.8°C)
• Maximum Dimensions -
4.50" x 9.88" (114 mm x 251 mm)
• Rating (nominal) -
25 micron
• Initial ∆P (psi) @ Flow Rate (gpm) -
<1 psi @ 10 gpm ( <0.1 bar @ 38 Lpm )
155358-43
PENTEK DGD SERIES GRADIENT DENSITY CARTRIDGES
Features
◆ Manufactured from pure 100% polypropylene.
◆ Designed for purity and chemical compatibility.
◆ Lengths: 10", 20"
◆ Spun fibers form a gradient density from outer to inner surfaces.
◆ Nominal 1, 5, 25-micron ratings.
Specifications
• Filter Media -
Polypropylene
• Temperature Rating -
40-145°F (4.4-62.8°C)
• Maximum Dimensions -
4.50" x 20" (114 mm x 508 mm)
• Rating (Nominal) -
5 micron
• Initial ∆P (Psi) @ Flow Rate (Gpm) -
<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm)
155531-43
PENTEK EP SERIES CARBON BLOCK CARTRIDGES
Features
◆ High dirt-holding capacity maximizes utilization of the carbon block.
◆ Highly effective bad taste & odor and chlorine taste & odor reduction.
◆ Nominal 5-micron rating.
Specifications
• Filter Media -
Bonded PAC
• End Caps -
Polypropylene
• Outer Wrap -
Polyolefin
• Netting -
Polyethylene
• Gaskets -
Buna-N
• Temperature Rating -
40-180°F (4.4-82.2°C)
• Maximum Dimensions -
2.88" x 9.75" (73 mm x 248 mm)
• Rating (nominal) -
5 micron
• Initial ∆P (psi) @ Flow Rate (gpm) -
3.4 psi @ 1 gpm (0.23 bar @ 3.8 Lpm)
• Chlorine Taste & Odor Reduction @ Flow Rate -
>6,000 gallons @ 1 gpm (22,700L @ 3.8 Lpm)
155634-43
PENTEK EPM SERIES MODIFIED EPSILON CARBON Block CARTRIDGES
Features
◆ Nominal 10 micron rating.
◆ Enhanced dirt holding capacity for extended cartridge life.
◆ Lowest pressure drop.
◆ Bad taste and odor, and chlorine taste & odor reduction.
◆ Economically priced.
Specifications
• Filter Media -
Bonded PAC
• End Caps -
Polypropylene
• Outer Wrap -
Polyolefin
• Netting -
Polyethylene
• Gaskets -
Buna-N
• Temperature Rating -
40-180°F (4.4-82.2°C)
• Maximum Dimensions -
2.88" x 9.75" (73 mm x 248 mm)
• Rating (nominal) -
10 micron
• Initial ∆P (psi) @ Flow Rate (gpm) -
1.5 psi @ 1 gpm (0.10 bar @ 3.8 Lpm)
• Chlorine Taste & Odor Reduction @ Flow Rate (Gpm) -
>3,000 gallons @ 1 gpm (11,400L @ 3.8 Lpm)
255694-43
PENTEK PS SERIES SPUN-BONDED POLYPROPYLENE CARTRIDGE
Features
◆ Manufactured from pure 100% polypropylene.
◆ Designed for purity and chemical compatibility.
◆ Spun fibers form a true gradient density from outer to inner surfaces.
◆ Nominal 1, 5, 20 micron rating.
◆ Lengths: 10”, 20”, 30”, 40”.
Specifications
• Filter Media -
Polypropylene fibers
• Temperature Rating -
40–145°F (4.4–62.8°C)
• Maximum Dimensions -
2.88" x 9.75" (60 mm x 248 mm)
• Rating (Nominal) -
5 micron
• Initial ∆P (Psi) @ Flow Rate (Gpm) -
1.0 psi @ 5 gpm (<0.1 bar @ 18.9 Lpm)
255695-43
PENTEK PS SERIES SPUN-BONDED POLYPROPYLENE CARTRIDGES
Features
◆ Manufactured from pure 100% polypropylene.
◆ Designed for purity and chemical compatibility.
◆ Spun fibers form a true gradient density from outer to inner surfaces.
◆ Nominal 1, 5, 20 micron rating.
◆ Lengths: 10”, 20”, 30”, 40”.
Specifications
• Filter Media -
Polypropylene fibres
• Temperature Rating -
40–145°F (4.4–62.8°C)
• Maximum Dimensions -
2.88" x 20" (60 mm x 508 mm)
• Rating (Nominal) -
5 micron
• Initial ∆P (Psi) @ Flow Rate (Gpm) -
0.5 psi @ 5 gpm (<0.1 bar @ 18.9 Lpm)
255748-43
PENTEK UDS/DBC SERIES GRANULAR ACTIVATED COCONUT SHELL CARBON CARTRIDGES
Features
◆ Bodies are constructed with high grade polypropylene or polystyrene.
◆ Spin and sonic welding assembly assures a uniform hermetic seal, which improves overall reliability.
◆ Cartridge volumes are some of the highest in the industry
◆ Designed to fit almost all standard housings (UDS-10EX1) and Big Blue housings (DBC-10EX2).
◆ Great for reverse osmosis, distillation, bottle-less coolers, and other water dispensing appliances.
Specifications
• Filter Media -
Coconut shell carbon
• Temperature Rating -
40-125°F (4.4-51.7°C)
• Maximum Pressure -
125 ps
• Maximum Dimensions -
4.50" x 9.84" (114 mm x 250 mm)
• Rating (Nominal) -
5 micron
• Initial ∆P (Psi) @ Flow Rate (Gpm) -
6 psi @ 2.0 gpm (0.41 bar @ 7.6 Lpm)
SA10641
Pentek Cartridge DGD-7525 Dual-Gradient Polypropylene 75/25 10" Big Blue Filter
Features / Benefits
◆ High rejection rates
◆ High flow capacities
◆ Superior quality and costs savings
Functionality
• high purity chemicals
• bottled water
pharmaceuticals, cosmetics
Specifications
• Brand – Pentek
• Model - DGD-7525
• Model 2 - DGD-7525
Dimensions / Weights
• Length in inch - 9.00
• Length in cm - 24.77
• Quantity per case - 8 pieces
SA10643
PENTEK-DBC-10EX2
Features / Benefits
◆ Bodies are constructed with high grade polypropylene or polystyrene.
◆ Spin and sonic welding assembly assures a uniform hermetic seal, which improves overall reliability.
◆ Cartridge volumes are some of the highest in the industry.
◆ Designed to fit almost all standard housings (UDS-10EX1) and Big Blue housings (DBC-10EX2).
◆ Great for reverse osmosis, distillation, bottle-less coolers, and other water dispensing appliances.
Specifications
• Filter Media -
Coconut shell carbon
• Temperature Rating -
40-125°F (4.4-51.7°C)
• Maximum Pressure -
125 psi
• Maximum Dimensions -
4.50" x 9.84" (114 mm x 250 mm)
• Rating (Nominal) -
5 micron
• Initial ∆P (Psi) @ Flow Rate (Gpm) -
6 psi @ 2.0 gpm (0.41 bar @ 7.6 Lpm)
