Coffee and Tea
EV927241
EVERPURE QC7I SINGLE HEAD
Product Description
• Commercial quality filter head is designed exclusively to fit Everpure filter cartridges.
• Includes built-in water shut-off valve.
• Quick sanitary cartridge change interface.
• Includes flushing valve quick change.
• Can be used with any Everpure QC Cartridge.
• Includes mounting brackets and screws.
• Built-in water pressure gauge helps monitor proper flow.
• All wetted parts have passed NSF® extraction tests.
• Will not corrode.
• Engineered for durability, strength, and longevity.
Specifications
◆ Overall Dimensions -
7.59" H x 8.04" W x 5.25" D
(19.3 x 20.4 x 13.3 cm)
◆ Inlet Connection -
3/8"
◆ Outlet Connection -
3/8"
◆ Service Flow Rate -
Maximum 1.67 gpm (6.3 Lpm)
◆ Pressure Requirements -
10 – 125 psi (0.7 – 8.6 bar), non-shock
◆ Temperature -
35 – 100°F (2 – 38°C)
◆ Electrical Connection -
None
◆ Shipping Weight -
1 lbs. (0.453 kg)
EV927222
EVERPURE QC7I TWIN PARALLEL HEAD
Product Description
• New redesigned commercial quality filter head for Everpure filter cartridges.
• Dual filter head is parallel plumbed
• Built-in water shut off valve and flushing valve make cartridge change outs easy.
• A cartridge nesting feature provides a more secure and durable fit.
• Includes mounting box bracket and screws for fast and easy installation. No extra mounting plate is required.
• Built-in water pressure gauge helps monitor proper flow.
• All wetted parts have passed NSF® extraction tests.
• Corrosion-resistant hardware.
• New modular design of box bracket allows for future retrofitting of add-on components without disassembly of system. Optional wing bracket kits are available.
• Engineered for durability, strength, and longevity.
Specifications
◆ Overall Dimensions -
8.5" H x 16.6" W x 5.5" D
(21.6 x 42.2 x 13.9 cm)
◆ Inlet Connection -
3/4"
◆ Outlet Connection -
3/4"
◆ Rated Capacity -
Varies according to filter cartridge used
◆ Electrical Connection -
None
◆ Shipping Weight -
2 lbs. (0.91 kg)

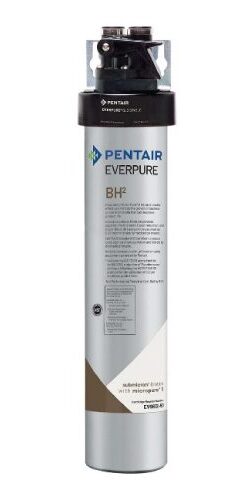

EV927200
EVERPURE QL3-BH(2) Water Filter System
Product Description
• Provides clear, fresh, premium quality ingredient water for great tasting coffee and beverages.
• Sanitary cartridge replacement is simple, quick and clean; internal filter parts are never exposed to handling or contamination.
• Engineered to always feed the correct amount of scale inhibitor into each volume of water.
• Proportioned scale inhibitor feed.
• Proprietary Everpure® Micro-Pure® II media inhibits the growth of bacteria.
• Precoat submicron technology reduces dirt and particles as small as 0.5-micron in size.
• Everpure’s unique filter blend using activated carbon reduces chlorine taste & odor and other offensive contaminants.
• Increases holding time of coffee.
• Saves energy by reducing scale buildup.
• Dramatically prevents limescale from forming in brewers.
• Reduces health contaminants such as cysts.
Specifications
◆ Service Flow Rate -
Maximum 0.5 gpm (1.9 Lpm)
◆ Rated Capacity -
3,000 gallons (11,350 L) or 6,000 pots
◆ Pressure Requirements -
10 – 125 psi (0.7 – 8.6 bar), non-shock
◆ Temperature -
35 – 100°F (2 – 38°C)
◆ Overall Dimensions -
16.5" H x 3.75" W x 4" D (41.9 cm x 9.5 cm x 10.1 cm)
◆ Inlet Connection -
3/8"
◆ Outlet Connection -
3/8"
◆ Electrical Connection -
None
◆ Shipping Weight -
4 lbs (1.8 kgs)
◆ Operating Weight -
7 lbs (3.1 kgs)
EV927560
EVERPURE QL2-OCS2 SINGLE SYSTEM
Product Description
• Provides clear, fresh, premium quality ingredient water for consistently great tasting coffee and beverages. .
• Sanitary cartridge replacement is simple, quick and clean; internal filter parts are never exposed to handling or contamination.
• Everpure’s unique filter blend using activated carbon reduces chlorine taste & odor and other offensive contaminants.
• Proprietary Micro-Pure® II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life.
• Exclusive submicron technology provides superior chlorine taste & odor reduction and micro-filters dirt and particles as small as 0.5 micron in size by mechanical means.
• Engineered to always feed the correct amount of scale inhibitor into each volume of water.
• Saves energy by reducing scale build-up; proportioned scale inhibitor feed prevents limescale from forming in brewing equipment.
• Reduces cysts such as Cryptosporidium and Giardia by mechanical means.
Specifications
◆ Service Flow Rate Maximum -
0.5 gpm (1.9 Lpm)
◆ Rated Capacity -
1,500 gallons (5,678 L) or 3,000 pots
◆ Pressure Requirements -
10 – 125 psi (0.7 – 8.6 bar), non-shock
◆ Temperature -
35 – 100°F (2 – 38°C)
◆ Overall Dimensions -
12.75" H x 3.75" W x 4" D
(30.4 cm x 9.5 cm x 10.1 cm)
◆ Inlet Connection -
3/8"
◆ Outlet Connection -
3/8"
◆ Electrical Connection -
None required
◆ Shipping Weight -
3 lbs (1.3 kgs)
◆ Operating Weight -
5 lbs (2.2 kgs)
EV925924
EVERPURE QL3B SINGLE HEAD
Product Description
• Commercial quality filter head is designed exclusively to fit Everpure filter cartridges..
• Solid durable construction is ideal for foodservice and vending applications.
• Includes mounting bracket and screws.
• Engineered for durability, strength and longevity.
• Includes built-in water shut-off valve.
• Corrosion resistant hardware.
• All wetted parts have passed NSF® extraction tests.
Specifications
◆ Overall Dimensions -
3" H x 3.75" W x 3.5" D
(7.6 cm x 9.5 cm x 8.9 cm)
◆ Electrical Connection -
None required
EV433990
EVERPURE CLARIS GEN2 3/8" BSP HEAD
Product Description
• Commercial-quality filter head is designed exclusively to fit Claris filter cartridges.
• Solid, durable construction is ideal for food service and vending applications.
• Engineered for durability, strength, and longevity.
• Corrosion-resistant hardware.
• Tamper proof bypass settings.
Specifications
◆ Overall Dimensions -
5.3" H x 3.9" W x 4.9" D
(13.5 cm x 10 cm x 12.4 cm)
◆ Electrical Connection -
None required
Head Features
◆ Fast change out - locks with only a 45° turn
◆ Built-in flush port
◆ Auto shut-off
◆ Quick and easy adjustable bypass; key provided
◆ Flow restrictor
◆ Backflow restrictor
EV433910
EVERPURE CLARIS SMALL FILTER CARTRIDGE
Product Description
• Five-stage filtration process
Stage 1- Prefiltration
Stage 2- Carbonate hardness adjustment
Stage 3- Fine filtration
Stage 4- Highly efficient carbon block
Stage 5- Solid membrane filter
• Operation in vertical or horizontal position.
• NSF® Certified under NSF/ANSI Standard 42.
• Operates in vertical or horizontal position.
• Removes harmful contaminants and unpleasant odors and tastes.
• Removes particles down to five (5) micron for highest equipment protection.
Specifications
◆ Overall Dimensions -
12.39" L x 3.74" dia. (31.5 cm x 9.4 cm)
◆ Service Flow Rate -
Maximum 0.5 gpm (2 Lpm)
◆ Rated Capacity -
400 gallons (1,514 L) for espresso and 450 gallons (1,703 L) for OCS/coffee.
This capacity is based on influent water hardness of 180 ppm with standard bypass settings.
For steam applications and other hardness levels consult installation and operations guide capacity and bypass settings charts.
◆ Pressure Requirements -
29 - 116 psi (2 – 8 bar), non-shock
◆ Temperature -
39 - 86°F (4 - 30°C)
◆ Electrical Connection -
None required
EV433911
EVERPURE CLARIS MEDIUM FILTER CARTRIDGE
Product Description
• Five-stage filtration process
Stage 1- Prefiltration
Stage 2- Carbonate hardness adjustment
Stage 3- Fine filtration
Stage 4- Highly efficient carbon block
Stage 5- Solid membrane filter
• Operation in vertical or horizontal position.
• NSF® Certified under NSF/ANSI Standard 42.
• Operates in vertical or horizontal position.
• Removes harmful contaminants and unpleasant odors and tastes.
• Removes particles down to five (5) micron for highest equipment protection.
Specifications
◆ Overall Dimensions -
16.78" L x 3.74" dia. (42.6 cm x 9.4 cm)
◆ Service Flow Rate -
Maximum 0.5 gpm (2 Lpm)
◆ Pressure Requirements -
29 - 116 psi (2 – 8 bar), non-shock
◆ Temperature -
39 - 86°F (4 - 30°C)
◆ Electrical Connection -
None required
◆ Treatment Capacity -
• Rated for 660 gallons (2,498 L) for Espresso applications and 790 gallons (2,990 L) of OCS/Coffee applications.
• This capacity is based on influent water hardness of 180 ppm with standard bypass settings.
• For steam applications and other hardness levels consult installation and operations guide capacity and bypass settings charts.
EV433912
EVERPURE CLARIS LARGE FILTER CARTRIDGE
Product Description
• Five-stage filtration process
Stage 1- Prefiltration
Stage 2- Carbonate hardness adjustment
Stage 3- Fine filtration
Stage 4- Highly efficient carbon block
Stage 5- Solid membrane filter
• Operation in vertical or horizontal position.
• NSF® Certified under NSF/ANSI Standard 42.
• Operates in vertical or horizontal position.
• Removes harmful contaminants and unpleasant odors and tastes.
• Removes particles down to five (5) micron for highest equipment protection.
Specifications
◆ Overall Dimensions -
14.18" L x 5.35" dia. (36.0 cm x 13.6 cm)
◆ Service Flow Rate -
Maximum 1.0 gpm (4 Lpm)
◆ Pressure Requirements -
29 - 116 psi (2 – 8 bar), non-shock
◆ Temperature -
39 - 86°F (4 - 30°C)
◆ Electrical Connection -
None required
◆ Treatment Capacity -
• 1,100 gallons (4,163 L) for espresso and 1,320 gallons (4,996 L) for OCS/coffee.
• This capacity is based on influent water hardness of 180 ppm with standard bypass settings.
• For steam applications and other hardness levels consult installation and operations guide capacity and bypass settings charts.
EV433931
EVERPURE CLARIS FLOWMETER
Product Description
• The programming and display unit provides the following information:
1. Residual capacity of installed filter cartridge.
2. Filtrate volume of the last five installed filter cartridges.
3. Operation time of the last five installed filter cartridges.
4. Total filtrate volume since Flow Sensor installation.
• The CLARIS Flow Sensor has been developed specifically to monitor the usage rate of the CLARIS water filter system and to determine the optimum cartridge replacement interval. After setting the programming unit to monitor the specific filter size, the Claris Flow Sensor continually measures the filtrate volume to calculate and display the remaining filtration capacity in liters.
• Once the available filtration capacity is exhausted or the maximum operation time has been reached the display unit indicates the filter cartridge replacement.
Specifications
- SENSOR UNIT
◆ Overall Dimensions -
3.15" H x 1.81" W x 1.69" D (8 x 4.5 x 4.2 cm)
◆ Inlet Connection -
3/8" BSP F Nut
◆ Outlet Connection -
3/8" BSP M
◆ Operating Pressure -
29 - 116 psi (2 - 8 bar)
◆ Flow Rate -
2.64 - 26.4 gph (10 - 100 Lph)
◆ Pressure Loss up to 26.4 gph (100 Lph) flow rate -
3 psi (0.2 bar)
◆ Precision (horizontal installation) -
±5%
◆ Water Temperature -
39 – 86°F (4 – 30°C)
◆ Ambient Temperature -
39 – 104°F (4 – 40°C)
◆ Installation Position -
Horizontal recommended
Programming and display unit
◆ Overall Dimensions
1.97" H x 2.95" W x 67" L (5 x 7.4 x 170.1cm)
◆ Splash Proof
IPX4
◆ Display 5 Digits
Counter 99999 - 9999 gallons
(Downwards 99999 - 9999 L)
◆ Cable
59" (1.5 meters)
EV306332
EVERPURE QL2 SINGLE WATER FILTER HEAD
Features - Benefits
• Commerical quality filter head is designed exclusively to fit Everpure filter cartridges.
• Solid durable construction is ideal for foodservice and vending applications.
• Engineered for durability, strength and longevity.
• Excludes 3/8" FPT fittings.
• Does not include water shut-off.
• Corrosion resistant hardware.
• All wetted parts have passed NSF® extraction tests.
Specifications
◆ Overall Dimensions -
3.2" H x 4.25" W x 4.5" D
(8.1 cm x 10.8 cm x 11.4 cm)
◆ Rated Capacity -
Varies according to filter cartridge used
◆ Electrical Connection -
None required
EV932806
HIGH FLOW CSR TRIPLE -MC² SYSTEM
Product Description
• One system provides premium quality water to high flow fountain dispensers, coffee makers and ice machines.
• Sanitary cartridge replacement is simple, quick and clean; internal filter parts are never exposed to handling or contamination.
• Proprietary Pentair§ Everpure§ Micro-Pure§ II filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life.
• Exclusive precoat filtration provides superior chlorine taste & odor reduction and micro-filters dirt and particles as small as 0.2* micron in size by mechanical means.
• Reduces chlorine taste & odor and other offensive contaminants that can adversely affect the taste of beverages.
• Increases the overall efficiency of equipment.
• 20" prefilter captures larger dirt particles.
• Pentair Everpure SR-X with Pentair Everpure SS-IMF Cartridge inhibits scale buildup in ice machines and coffee brewers.
• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
Specifications
◆ Service Flow Rate -
Maximum 5 gpm (18.9 Lpm)
◆ Rated Capacity -
27,000 gallons (102,206 L)
◆ Pressure Requirements -
10 – 125 psi (0.7 – 8.6 bar), non-shock
◆ Temperature -
35 – 100°F (2 – 38°C)
◆ Overall Dimensions -
25.59" L x 30" W x 6.74" D (
64.9 cm x 76.2 cm x 17.1 cm)
◆ Inlet Connection -
3/4"
◆ Outlet Connection -
3/4"
◆ Operating Weight -
49 lbs (22.2 kgs)
◆ Shipping Weight -
39 lbs (17.6 kgs)
◆ Electrical Connection -
None required
